Road Marking Material

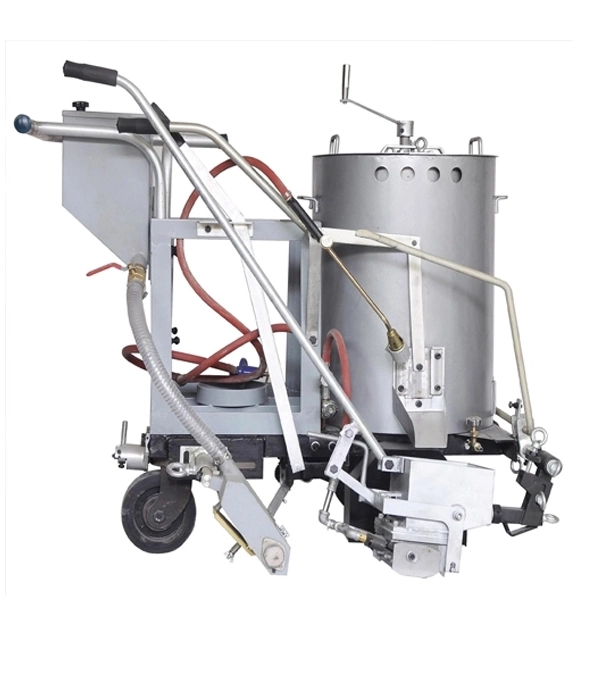

Thermoplastic Road Marking Machine Applicator

• • Thermoplastic applicator capacity: 100 Kg (Stainless steel 204)
• • Glass beads: 12 Kg.
• • Glass beads system spraying: Rotor type.
• • Weight : 130 Kg.
• • Heating system: LPG.
• • Dimensions: 16x40x36 inches (WxLxH).
• • Attached with two dispensing box: 10 cm , 15 cm , 50 cm.
• • Laying shoes: 10 cm and 15 cm.
• • Front wheel size: 25 cm x 5 cm made of special rubber.
• • Rear wheel size: 15 cm x 5 cm made of special rubber.
• • Operating system: Manual.

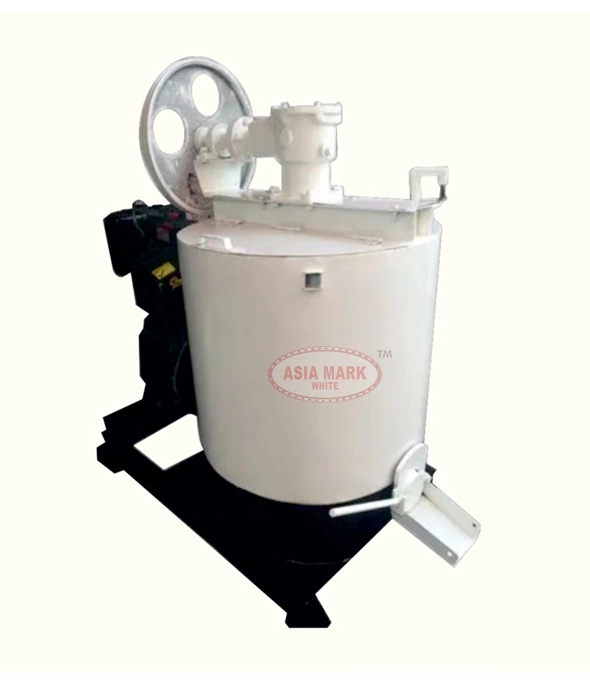

Thermoplastic Road Marking Boiler (300 Kg - 4hp)

• Boiler Capacity : 300 Kg.
• Boiler Dimension: 91x142x157 cm.
• Oil System: Of HP company.
• Engine horse power: 4 horse power (Air cold diesel engine of onkar).
• No.of burners: 5.
• Made of gear box: Swaraj, Mahindra or Mitsubishi, Eicher.
• Heating system: LPG.
• Jacket: Made of 4 layers.
• Jacket 2: MS Steel, 4mm thickness, enclosed with Oil.
• Jacket 3: MS Steel, 2mm thickness, enclosed with air.
• Jacket 4: MS Steel, 2mm thickness, enclosed with glass wool.
• Operating system: Manual.

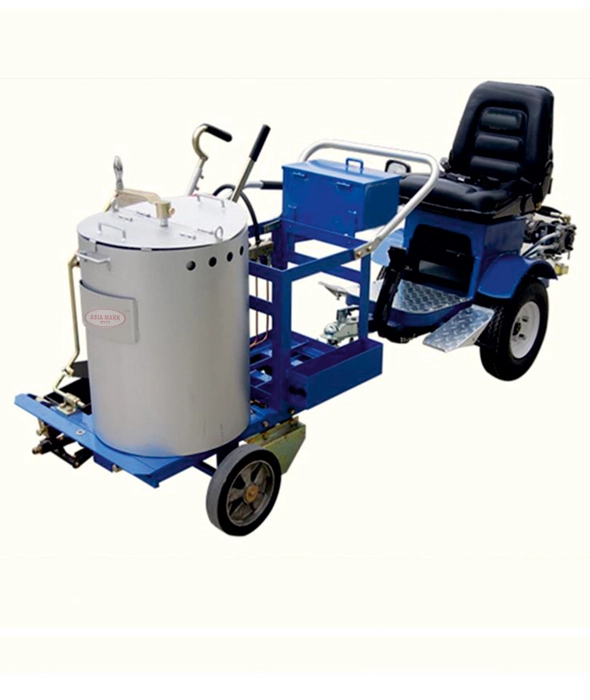

Semi Automatic Road Marking Machine

• Machine Tank: Stainless Steel 204 Operating System : Semi Automatic Driver : One
• Dispenser Box: 10 X 15 cm (2 Nos)
• Laying Shoes: 10 X 15 cm With Thickness Controller Tips
• Connection: Hydraulic
• Type: Self propelled
• Output: 1200 sq meter per day

Convex Road Marking Machine

This mechanical type vibrating road line machine can mark both basic line and raised lines automatically. Some of its prominent features include the use of liquid gas, ability of the mixer to stir two ways back and forth, optimum maintenance of the paint temperature for marking.

Technical specifications:

• • Model: RV CRM01
• • Dimension: 1200x900x110 mm
• • Machine Net Weight: 130 Kg
• • Paint Tank Capacity: 100 Kg
• • Glass Beads Box Capacity: 10 Kg
• • Heating Temperature: 0-250oC
• • Heating Method: Use liquid Gas
• • Marking hopper Width: 150, 200, 300 mm
• • Marking Speed: 0~600 mm/s, 500~100m/h
• • Raised Dots Marking Thickness: 3, 5 or 7 mm
• • Flat Line Marking Thickness: 1-3 mm
